RS485toMBus-5M, M-Port line
RS485 to M-Bus communication converter
|
|
|
Application
Remote data retrieval from M-Bus devices via the RS485 serial communication line in industry and building automation. The most frequently used M-Bus slave devices are heat, water and electricity consumption meters.
Description
The RS485toMBus-5M converter provides a RS485 to M-Bus interface conversion. There is no change in the content of the messages or communication speed during the conversion. The maximum possible number of M-Bus slave devices that can be connected is five.
Main characteristics
M-Bus port
- Connection of 1 to 5 M-Bus slave devices.
- Surge protection guaranteeing superior durability against overvoltage.
- Current protection against overload and short circuit on the communication line
with LED status indication.
Power supply
- Wide range of power supply voltages. DC 7.5 - 40V and AC 7.5 - 28V.
- Overvoltage protection.
- LED power supply indication.
RS485
- Signals: A, B and GND.
- Protections against overvoltage.
- Galvanic separation from the M-Bus line.
Mechanical construction
- Plastic box with mounting on 35 mm DIN rail.
- Narrow box. 17.5mm mounting width on the DIN rail.
Differences from the RS485toMBus-5 converter
- Very small mounting width on the DIN rail.
- Less powerful overvoltage protection on the M-Bus line.
- Less powerful M-Bus line driver. The maximum length of the M-Bus line is in the range of hundreds of meters.
- Smaller operating temperature range.
Guarantee of quality
- Each converter passes through several functional electrical tests during the production.
Additionally a communication test is performed after final assembly.
- EMC certification in an accredited laboratory for industrial environment.
- Solid design and construction based on many years practical experience.
|
|
| Communication signals | A (+ Tx/Rx), B (- Tx/Rx), GND |
| Protection | overvoltage protection TVS 600W |
| Terminating resistors | A 10kΩ to +5V, B 10kΩ to GND |
| Galvanic separation | 1kV from M-Bus linky |
| Connector | terminals for wires of up to 2.5 mm2 cross-section area |
|
| Number of devices that can be connected | 1 to 5 SLAVE devices, idle current max. 7.5mA |
| Baud rate | 300 - 9600 bps |
| Protection | - overvoltage protection TVS 600W |
- electronic protection against overloads and short circuit on the communication line |
note: converter can withstand sustained short circuit on the communication line |
| Galvanic separation | 1kV from power supply and from RS485 line |
| Connector | terminals for wires of up to 2.5 mm2 cross-section area |
|
| Recommended range of power supply voltages |
| DC power supply | 7.5V to 40V |
| AC power supply | 7.5V to 28V |
| Protection | - overvoltage protection TVS 1500W |
| Power consumption | 0.25W to 1.1W. Depends on M-Bus line load and power supply.
Maximum power consumption during a short on the M-Bus line is 1.5W. |
| Connector | terminals for wires of up to 2.5 mm2 cross-section area |
|
| Power - blue | indication of connected supply voltage |
| Transmit - green | indication of data broadcasting on the M-Bus line |
| Receive - yellow | indication of data reception on the M-Bus line |
| Overload/Short - red | indication of M-Bus line overload – flashing (idle current > 7,5mA), |
| indication of short on the M-Bus line – turned on (resistance of the line < 500Ω) |
|
| Operating range | -20°C to 70°C |
|
| Mechanical design | plastic box |
| Mounting | 35 mm DIN rail (EN 50022 top hat rail) |
| Dimensions: height x width x length | 56.5 x 17.5 x 97.5 mm |
| Protection classification | IP20 |
| Weight | 52g |
EMC compatibility of the M-Bus converter has been tested according to the following home environment standards.
|
| Standard | Test | Level |
| EN 55022 | Power line - CONDUCTED EMISSIONS 10/150 kHz - 30 MHz | Class B |
| EN 55022 | RADIATED EMISSIONS (Electric Field) 30 MHz - 1000 MHz | Class B |
| |
|
| Standard | Test | Level |
| EN 61000-4-2 | ELECTROSTATIC DISCHARGE (ESD) - Contact discharge | ± 4 kV |
| EN 61000-4-2 | ELECTROSTATIC DISCHARGE (ESD) - Air discharge | ± Information sheet |
| EN 61000-4-4 | ELECTRICAL FAST TRANSIENT/BURST - Power line | ± 4 kV |
| EN 61000-4-4 | ELECTRICAL FAST TRANSIENT/BURST - M-Bus line | ± 4 kV |
| EN 61000-4-5 | SURGE IMMUNITY - Power line. Common/differential mode. | ± 1 kV / ± 0.5 kV |
| EN 61000-4-5 | SURGE IMMUNITY - M-Bus line. Cable shielding. | ± 4 kV |
| EN 61000-4-5 | SURGE IMMUNITY - M-Bus line. Common/differential mode.* | ± 2 kV / ± 1 kV |
| EN 61000-4-6 | CONDUCTED DISTURBANCES, INDUCED BY RADIO-FREQUENCY | 3 V |
| FIELDS 0.15MHz - 80 MHZ. Power line and M-Bus line. |
* test carried out at the request of the manufacturer.
The M-Bus port has an increased durability against overvoltage. Carrying out this type of test is not required with the use of shield cable.
|
|
End user
Price list for individuals and companies
which do not buy converters for resale.
|
| |
|
Integrator
Price list for companies which buy converters for the purpose of resale
to their custommers as manufacturers or suppliers.
The price list is available only to registered business partners.
Registration request.
|
|
|
Promotional leaflet
|
Download
|
|
RS485toMBus-5M_flyer_v1_0_EN.pdf
|
22.11. 2021
|
276 kB
|
|
|
Manual
|
Download
|
|
RS485toMBus-5M_manual_v1_0_EN.pdf
|
22.11. 2021
|
1.06 MB
|
|
|
Top view
Typical application
Typical wiring of the converter with M-Bus devices, power supply and a RS485 serial communication link connection to a computer.
LED indication
|
| Power |
Indication of connected supply voltage. |
blue |
| Transmit |
Indication of data transmission on the M-Bus line. |
green |
| Receive |
Indication of data reception on the M-Bus line. |
yellow |
| Overload/Short |
Indication of short and overload on the M-Bus line. |
red |
- indication of a short on the M-Bus line (resistance of line < 500 Ω) - LED turned on |
- indication of M-Bus line overload - alternating flashing of Overload/Short LED and Receive LED |
Connectors on the Power Supply and M-Bus side
|
M-Bus | Connector for the M-Bus line. | built-in |
Power | Connector for power supply. | built-in |

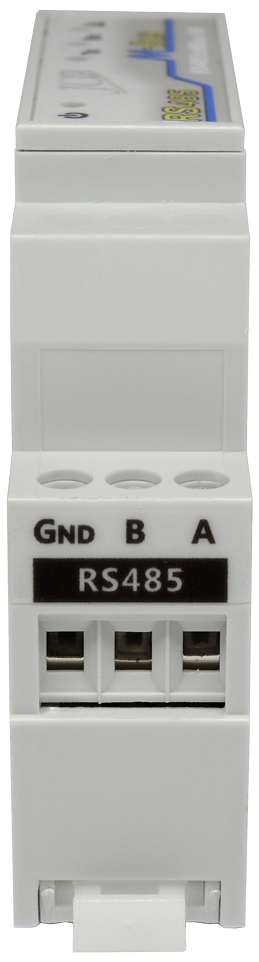

Connectors on the RS485 side
|
| RS485 | Connector for the RS485 interface. | built-in |
Dimensions
|
|
|
|
|
|
|
