USBtoMBus-5K

In terms of compactness and ease of connection to a PC this converter is an ideal tool for configuring M-Bus meters at their place of installation and for their on-site inspection.

It can also be used for permanent data readout from M-Bus devices via the USB interface in industry or building automation applications. The most commonly used M-Bus slave devices in these applications are heat, water and electricity consumption meters.

The USBtoMBus-5K converter enables connection of an M-Bus line with readout devices through the USB interface. The communication works the same way as with a RS232 converter. Message transmission is done without any changes to message content. The communication speed is set in the USB serial port drivers. The maximum number of M-Bus slave devices that can be connected is 5.

M-Bus port

• Connection of 1 to 5 M-Bus slave devices.
• Surge protection guaranteeing superior protection against overvoltage.
• Current protection against overload and short circuit on the communication line
  with LED status indication.

USB

• Galvanic separation from the M-Bus line.

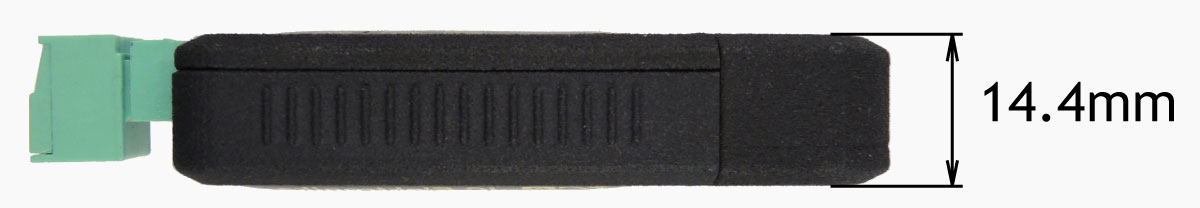

Mechanical construction

• The converter is in a plastic box that is 3D printed using SLS technology from a Nylon 12 powder.

• The converter is packaged in a stylish higher quality box with dimensions (w x h x d) 11.2cm x 8.6cm x 2.7cm.
• The package also includes a short 15cm USB extension cable.

• Each converter passes through several functional electrical tests during the production.
  Additionally a communication test is performed after final assembly.
• Solid design and construction based on many years practical experience.
